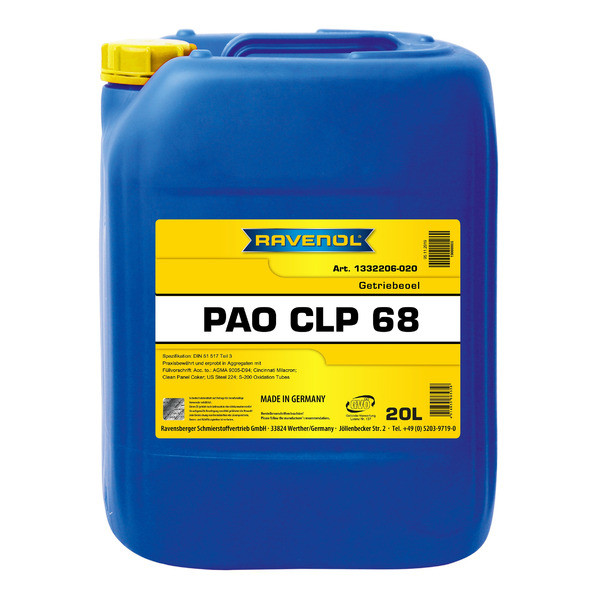

RAVENOL Getriebeoel PAO CLP 68 is premium performance, extreme pressure lubricant designed for enclosed industrial gears and bearings operating under severe load conditions and in wide extremes of temperature.
Պահանջներին համապատասխանելը:
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
- Առկա փաթեթավորում
- Ապրանքի պարամետրեր
RAVENOL Getriebeoel PAO CLP 68 is premium performance, extreme pressure lubricant designed for enclosed industrial gears and bearings operating under severe load conditions and in wide extremes of temperature.
RAVENOL Getriebeoel PAO CLP 68 is formulated using PAO synthetic base oils and additive technologies to deliver excellent wear properties, outstanding extreme temperature performance for extended component and fluid life.
RAVENOL Getriebeoel PAO CLP 68 enhances gear box efficiency over a wide temperature range and can reduce power consumption.
Application Note
RAVENOL Getriebeoel PAO CLP 68 is recommended for enclosed industrial gear drives and bearings particularly where they are operated under heavy duty conditions such as heavy loading, slow speed, shock loads and in wide extremes of temperature.The tough oil film of RAVENOL Getriebeoel PAO CLP 68 and low coefficient of friction save energy in gearboxes. The high viscosity index of RAVENOL Getriebeoel PAO CLP 68 means they retain their viscosity at high operating temperatures. This often allows the use of a lower ISO grade than with conventional gear oil resulting in even greater energy savings.
RAVENOL Getriebeoel PAO CLP 68 is designed to combat these conditions and will run cooler while maintaining a high lubricant film strength. For gearboxes that operate outdoors. When converting a gearbox to RAVENOL Getriebeoel PAO CLP 68, it is recommended to be cleaned and flushed first to gain the full benefit of the product.
RAVENOL Getriebeoel PAO CLP 68 operates over the temperature range from -50°C to 150°C, with simultaneous corrosion protection for colored metal parts.
Characteristics
- A very stable high-pressure capacity for impact loads
- Excellent performance at extreme temperatures, protects the plant.
- A very low pour point.
- Excellent wear protection.
- Provides excellent resistance to rust and copper corrosion.
- Low foaming.
- Protects equipment that operates under harsh conditions and high loads.
- Extends the service life of the gearboxes and bearings and thus of the systems.
- Provides trouble-free operation over a wide temperature and load range.
- Excellent film strength and high pressure properties.
- Reduces the likelihood of chafing and fretting wear, as well as breakage of the gear teeth and bearing surface under high loads.
- The synthetic formulation reduces friction, therefore energy efficient in a wide temperature range.
- High viscosity index (VI) for a wide operating temperature range.
Կարգավորում | Չափման միավոր | Արժեք | Փորձարկում | |
---|---|---|---|---|
Brand | RAVENOL |
RAVENOL
|
||
Տեսակ | Full synthetic |
Full synthetic
|
||
Համապատասխանում է արտադրողի պահանջներին | AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
|
||
Համապատասխանում է արտադրողի բնութագրերին | DIN 51517-3 |
DIN 51517-3
|
||
Համապատասխանում է | Cincinnati Milacron |
Cincinnati Milacron
|
||
Հատուկ հզորություն 20°C-ի դեպքում | գ/սմ³ | 843 | EN ISO 12185 |
843
գ/սմ³
EN ISO 12185
|
Գույն | light yellow | տեսողական |
light yellow
տեսողական
|
|
Մածուցիկություն 100 °C-ում | mm²/s | 11.7 | DIN 51562-1 |
11.7
mm²/s
DIN 51562-1
|
Մածուցիկություն 40 °C-ում | mm²/s | 66.5 | DIN 51562-1 |
66.5
mm²/s
DIN 51562-1
|
Մածուցիկության ինդեքս VI | 173 | DIN ISO 2909 |
173
DIN ISO 2909
|
|
Բյուրեղացման ջերմաստիճան | °C | -63 | DIN ISO 3016 |
-63
°C
DIN ISO 3016
|
Կառուցման ջերմաստիճան | °C | 252 | DIN EN ISO 2592 |
252
°C
DIN EN ISO 2592
|
Պղնձյա շերտի փորձարկում 150°C-ում | 1a | ASTM D130 |
1a
ASTM D130
|
|
Թույլատվություններ | AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
|

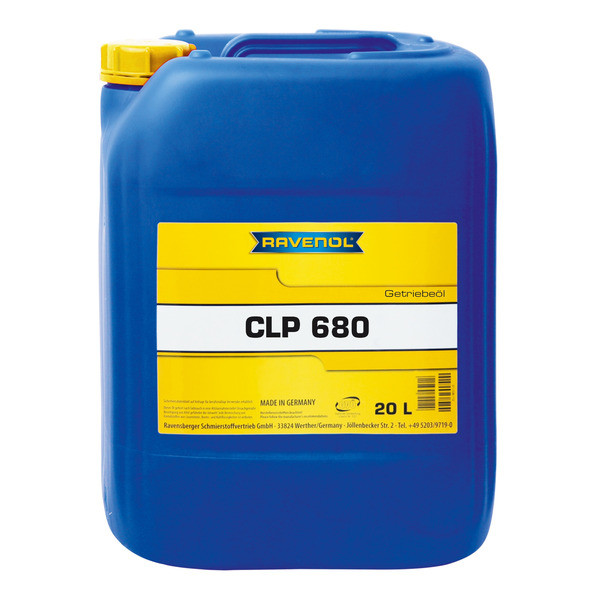

RAVENOL Getriebeoel CLP 680 is a high quality transmission fluid on a mineral oil basis, formulated with unleaded high pressure additives (EP additives). A very good, stable high pressure absorption capacity for impact loads is achieved due to its special combination of ingredients.
Պահանջներին համապատասխանելը:
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
SAE: 680
- Առկա փաթեթավորում
- Ապրանքի պարամետրեր
Ծավալը:
20 լ
վաճառողի կոդը:
1332112-020
Ծավալը:

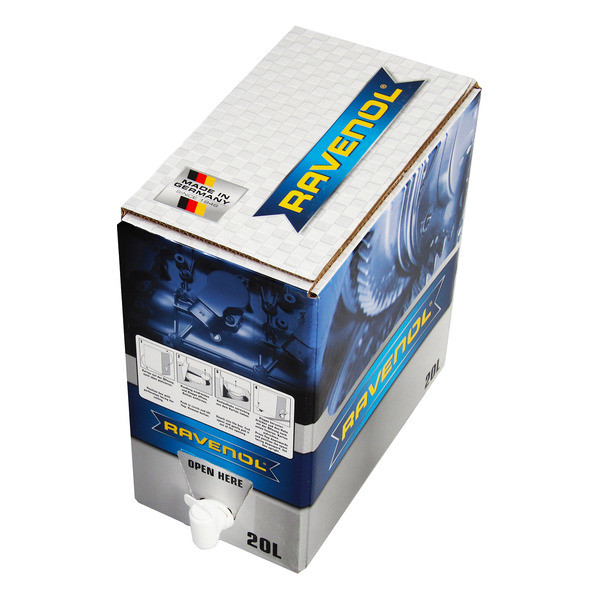

20 լ, ecobox
վաճառողի կոդը:
1332112-B20

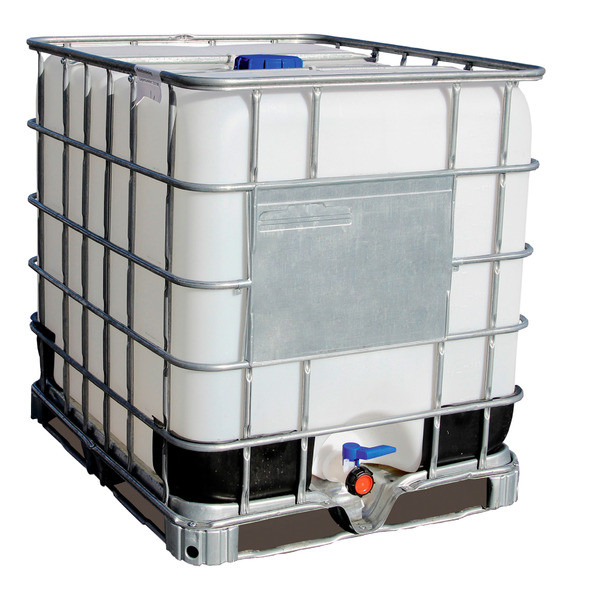

Ծավալը:
1 000 լ
վաճառողի կոդը:
1332112-700
RAVENOL Getriebeoel CLP 680 is a high quality transmission fluid on a mineral oil basis, formulated with unleaded high pressure additives (EP additives). A very good, stable high pressure absorption capacity for impact loads is achieved due to its special combination of ingredients.
RAVENOL Getriebeoel CLP 680 has a low pour point and therefore, an extremely good low-temperature performance.
Application Note
RAVENOL Getriebeoel CLP 680 can be used as a lubricant in almost all industrial gears under heavy load and / or shock load due to its excellent properties.
Characteristics
- Excellent, stable high pressure absorption capacity for impact loads
- Stable properties in increased temperatures
- A good rust-inhibiting and anticorrosive effect
- Excellent wear protection
- Very good effect against foaming
- A low pour point
- Excellent low-temperature performance
Կարգավորում | Չափման միավոր | Արժեք | Փորձարկում | |
---|---|---|---|---|
SAE | 680 |
680
|
||
Brand | RAVENOL |
RAVENOL
|
||
Տեսակ | Mineral |
Mineral
|
||
Համապատասխանում է արտադրողի պահանջներին | AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
|
||
Համապատասխանում է արտադրողի բնութագրերին | DIN 51517-3 |
DIN 51517-3
|
||
Համապատասխանում է | Cincinnati Milacron |
Cincinnati Milacron
|
||
Հատուկ հզորություն 20°C-ի դեպքում | գ/սմ³ | 903 | EN ISO 12185 |
903
գ/սմ³
EN ISO 12185
|
Գույն | tan | տեսողական |
tan
տեսողական
|
|
Մածուցիկություն 100 °C-ում | mm²/s | 37.4 | DIN 51562-1 |
37.4
mm²/s
DIN 51562-1
|
Մածուցիկություն 40 °C-ում | mm²/s | 666.2 | DIN 51562-1 |
666.2
mm²/s
DIN 51562-1
|
Մածուցիկության ինդեքս VI | 91 | DIN ISO 2909 |
91
DIN ISO 2909
|
|
Բյուրեղացման ջերմաստիճան | °C | -12 | DIN ISO 3016 |
-12
°C
DIN ISO 3016
|
Կառուցման ջերմաստիճան | °C | 312 | DIN EN ISO 2592 |
312
°C
DIN EN ISO 2592
|
Թույլատվություններ | AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
|

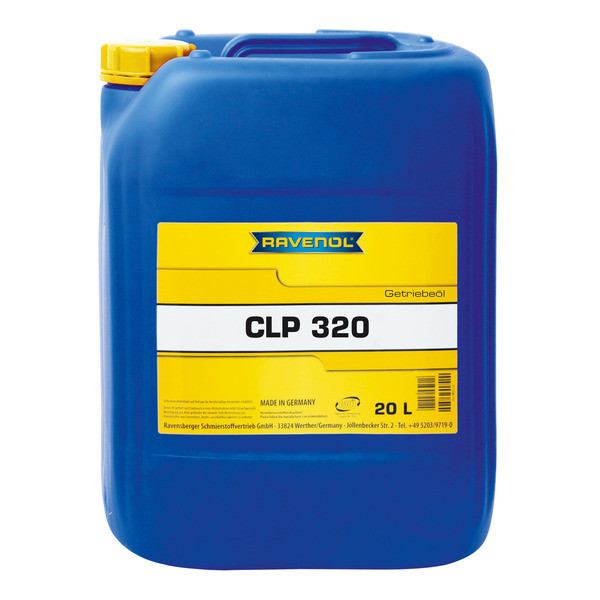

Getriebeoel CLP 320
Արդյունաբերական փոխանցման փոխանցման յուղ ' ծանր բեռնված արդյունաբերական սարքավորումների բոլոր տեսակի փոխանցումատուփերի, ճիճուների և պտուտակային փոխանցումներ յուղման համար:
Պահանջներին համապատասխանելը:
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
SAE: 320
- Առկա փաթեթավորում
- Ապրանքի պարամետրեր
RAVENOL Getriebeoel CLP 320 is a high quality, mineral-based gear oil formulated with lead-free high-pressure additives (EP additives). Its special active substance combination provides a good, stable high-pressure impact load capacity.
RAVENOL Getriebeoel CLP 320 has a low pour point and therefore a very good cold behaviour.
Application Note
RAVENOL Getriebeoel CLP 320 can be used as a lubricant in nearly all industrial gear drives due to its good stress and/or impact characteristics.
Characteristics
- A very good, stable high-pressure impact capacity.
- Resistant characteristics at high temperatures
- A good rust and corrosion impeding effect
- Excellent wear protection
- Very good anti-foaming characteristics
- A low pour point
- Very good cold behaviour
Կարգավորում | Չափման միավոր | Արժեք | Փորձարկում | |
---|---|---|---|---|
SAE | 320 |
320
|
||
Տեսակ | Mineral |
Mineral
|
||
ASTM |
|
|||
Հաստատված է արտադրողի կողմից |
|
|||
Համապատասխանում է արտադրողի պահանջներին | AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
|
||
Փորձարկված գործընկերների կողմից |
|
|||
Գործընկերների կողմից առաջարկված |
|
|||
Համապատասխանում է արտադրողի բնութագրերին | DIN 51517-3 |
DIN 51517-3
|
||
Համապատասխանում է | Cincinnati Milacron |
Cincinnati Milacron
|
||
Համապատասխանում է ապրանքներին |
|
|||
Հատուկ հզորություն 20°C-ի դեպքում | գ/սմ³ | 395 | EN ISO 12185 |
395
գ/սմ³
EN ISO 12185
|
Գույն | tan | տեսողական |
tan
տեսողական
|
|
Մածուցիկություն 100 °C-ում | mm²/s | 24.3 | DIN 51562-1 |
24.3
mm²/s
DIN 51562-1
|
Մածուցիկություն 40 °C-ում | mm²/s | 327.6 | DIN 51562-1 |
327.6
mm²/s
DIN 51562-1
|
Մածուցիկության ինդեքս VI | 95 | DIN ISO 2909 |
95
DIN ISO 2909
|
|
Բյուրեղացման ջերմաստիճան | °C | -9 | DIN ISO 3016 |
-9
°C
DIN ISO 3016
|
Կառուցման ջերմաստիճան | °C | 244 | DIN EN ISO 2592 |
244
°C
DIN EN ISO 2592
|
Թույլատվություններ | AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
|
RAVENOL Getriebeoel CLP 46 is a high quality, mineral-based gear oil formulated with selected high-pressure additives (EP additives). Its special active substance combination provides a good, stable high-pressure impact load capacity. has a low pour point and therefore a RAVENOL Getriebeoel CLP 46 has a low pour point and therefore a very good cold behaviour.
Պահանջներին համապատասխանելը:
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
SAE: 46
- Առկա փաթեթավորում
- Ապրանքի պարամետրեր
Ծավալը:
20 լ
վաճառողի կոդը:
1332105-020

Ծավալը:
208 լ
վաճառողի կոդը:
1332105-208
RAVENOL Getriebeoel CLP 46 is a high quality, mineral-based gear oil formulated with selected high-pressure additives (EP additives). Its special active substance combination provides a good, stable high-pressure impact load capacity. has a low pour point and therefore a RAVENOL Getriebeoel CLP 46 has a low pour point and therefore a very good cold behaviour.
Application Note
RAVENOL Getriebeoel CLP 46 can be used as a lubricant in nearly all industrial gear drives due to its good stress and/or impact characteristics.
Characteristics
- A very good, stable high-pressure absorption capacity under shock loads.
- Resistant properties at elevated temperatures
- A good anti-rust and anti-corrosion effect
- Excellent wear protection
- A very good effect against foam formation
- A low pour point
- Very good cold behavior
Կարգավորում | Չափման միավոր | Արժեք | Փորձարկում | |
---|---|---|---|---|
SAE | 46 |
46
|
||
Brand | RAVENOL |
RAVENOL
|
||
Տեսակ | Mineral |
Mineral
|
||
Համապատասխանում է արտադրողի պահանջներին | AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
|
||
Համապատասխանում է արտադրողի բնութագրերին | DIN 51517-3 |
DIN 51517-3
|
||
Համապատասխանում է | Cincinnati Milacron |
Cincinnati Milacron
|
||
Հատուկ հզորություն 20°C-ի դեպքում | գ/սմ³ | 857 | EN ISO 12185 |
857
գ/սմ³
EN ISO 12185
|
Գույն | Yellow | տեսողական |
Yellow
տեսողական
|
|
Մածուցիկություն 100 °C-ում | mm²/s | 7 | DIN 51562-1 |
7
mm²/s
DIN 51562-1
|
Մածուցիկություն 40 °C-ում | mm²/s | 44.8 | DIN 51562-1 |
44.8
mm²/s
DIN 51562-1
|
Մածուցիկության ինդեքս VI | 114 | DIN ISO 2909 |
114
DIN ISO 2909
|
|
Բյուրեղացման ջերմաստիճան | °C | -30 | DIN ISO 3016 |
-30
°C
DIN ISO 3016
|
Կառուցման ջերմաստիճան | °C | 224 | DIN EN ISO 2592 |
224
°C
DIN EN ISO 2592
|
Թույլատվություններ | AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
|
RAVENOL Getriebeoel CLP 32
Պահանջներին համապատասխանելը:
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
SAE: 32W
- Առկա փաթեթավորում
- Ապրանքի պարամետրեր
Ծավալը:
20 լ
վաճառողի կոդը:
1332104-020
RAVENOL Getriebeoel CLP 32
is a high quality, mineral-based gear oil formulated with selected high-pressure additives (EP additives). Its special active substance combination provides a good, stable high-pressure impact load capacity.
RAVENOL Getriebeoel CLP 32
has a low pour point and therefore a very good cold behaviour.
Application Note
RAVENOL Getriebeoel CLP 3
can be used as a lubricant in nearly all industrial gear drives due to its good stress and/or impact characteristics.
Characteristics
- A very good, stable high-pressure absorption capacity under shock loads.
- Resistant properties at elevated temperatures
- A good anti-rust and anti-corrosion effect
- Excellent wear protection
- A very good effect against foam formation
- A low pour point
- A very good cold behavior
Կարգավորում | Չափման միավոր | Արժեք | Փորձարկում | |
---|---|---|---|---|
SAE | 32W |
32W
|
||
Brand | RAVENOL |
RAVENOL
|
||
Տեսակ | Mineral |
Mineral
|
||
Համապատասխանում է արտադրողի պահանջներին | AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
|
||
Համապատասխանում է արտադրողի բնութագրերին | DIN 51517-3 |
DIN 51517-3
|
||
Համապատասխանում է | Cincinnati Milacron |
Cincinnati Milacron
|
||
Հատուկ հզորություն 20°C-ի դեպքում | գ/սմ³ | 854 | EN ISO 12185 |
854
գ/սմ³
EN ISO 12185
|
Գույն | Yellow | տեսողական |
Yellow
տեսողական
|
|
Մածուցիկություն 100 °C-ում | mm²/s | 6 | DIN 51562-1 |
6
mm²/s
DIN 51562-1
|
Մածուցիկություն 40 °C-ում | mm²/s | 34.6 | DIN 51562-1 |
34.6
mm²/s
DIN 51562-1
|
Մածուցիկության ինդեքս VI | 119 | DIN ISO 2909 |
119
DIN ISO 2909
|
|
Բյուրեղացման ջերմաստիճան | °C | -30 | DIN ISO 3016 |
-30
°C
DIN ISO 3016
|
Կառուցման ջերմաստիճան | °C | 205 | DIN EN ISO 2592 |
205
°C
DIN EN ISO 2592
|
Թույլատվություններ | AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
|

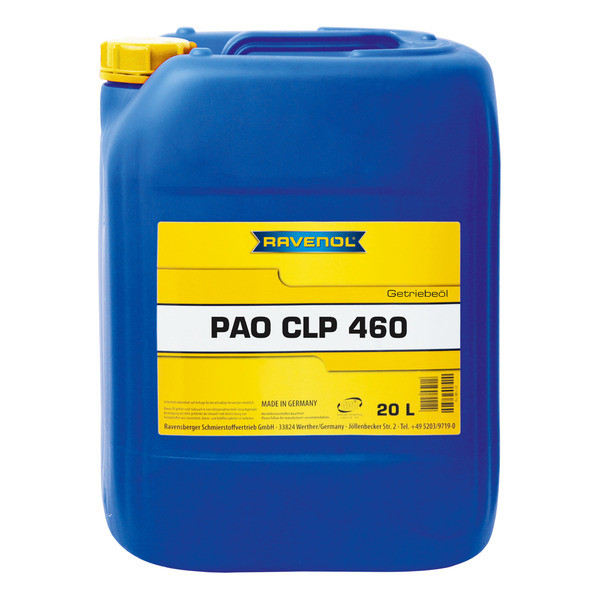

RAVENOL Getriebeöl PAO CLP 460 is premium performance, extreme pressure lubricant designed for enclosed industrial gears and bearings operating under severe load conditions and in wide extremes of temperature.
Պահանջներին համապատասխանելը:
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
SAE: 460
- Առկա փաթեթավորում
- Ապրանքի պարամետրեր
Ծավալը:
60 լ
վաճառողի կոդը:
1332211-060
Ծավալը:
208 լ
վաճառողի կոդը:
1332211-208

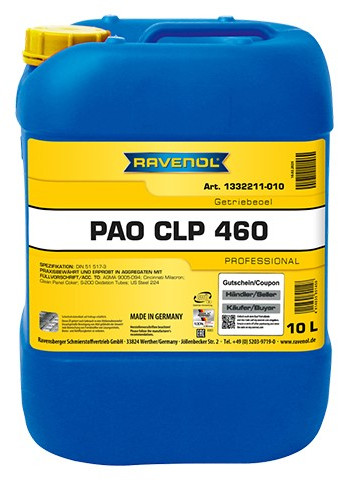

Ծավալը:
10 լ
վաճառողի կոդը:
1332211-010
RAVENOL Getriebeöl PAO CLP 460 is premium performance, extreme pressure lubricant designed for enclosed industrial gears and bearings operating under severe load conditions and in wide extremes of temperature.
RAVENOL Getriebeöl PAO CLP 460 is formulated using PAO synthetic base oils and additive technologies to deliver excellent wear properties, outstanding extreme temperature performance for extended component and fluid life.
RAVENOL Getriebeöl PAO CLP 460 enhances gear box efficiency over a wide temperature range and can reduce power consumption.
RAVENOL Getriebeöl PAO CLP 460 is free of zinc and ash due to its formulation.
Application Note
RAVENOL Getriebeöl PAO CLP 460 is recommended for enclosed industrial gear drives and bearings particularly where they are operated under heavy duty conditions such as heavy loading, slow speed, shock loads and in wide extremes of temperature.
The tough oil film of RAVENOL Getriebeöl PAO CLP 460 and low coefficient of friction save energy in gearboxes. The high viscosity index of RAVENOL Getriebeöl PAO CLP 460 means they retain their viscosity at high operating temperatures. This often allows the use of a lower ISO grade than with conventional gear oil resulting in even greater energy savings.
RAVENOL Getriebeöl PAO CLP 460 is designed to combat these conditions and will run cooler while maintaining a high lubricant film strength. For gearboxes that operate outdoors.
When converting a gearbox to RAVENOL Getriebeöl PAO CLP 460, it is recommended to be cleaned and flushed first to gain the full benefit of the product.
RAVENOL Getriebeöl PAO CLP 460 is compatible with mineral oils, polyalphaolefin lubricants and most seal materials except natural rubber.
RAVENOL Getriebeöl PAO CLP 460 operates over the temperature range from -50°C to 120°C.
Characteristics
- An excellent wear protection
- Extends the life of gears and bearings and the plant
- Protects plants, which are operated under harsh conditions and high load
- Allows trouble-free operation in a wide temperature and load range
- A very stable high-pressure absorption capacity under shock loads
- A low foaming tendency
- The synthetic formulation reduces friction, and is energy-efficient in a wide temperature range
- An excellent low-temperature behavior
- An excellent rust and corrosion protection
Կարգավորում | Չափման միավոր | Արժեք | Փորձարկում | |
---|---|---|---|---|
SAE | 460 |
460
|
||
Brand | RAVENOL |
RAVENOL
|
||
Տեսակ | Full synthetic |
Full synthetic
|
||
Համապատասխանում է արտադրողի պահանջներին | AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
|
||
Համապատասխանում է արտադրողի բնութագրերին | DIN 51517-3 |
DIN 51517-3
|
||
Համապատասխանում է | Cincinnati Milacron |
Cincinnati Milacron
|
||
Հատուկ հզորություն 20°C-ի դեպքում | գ/սմ³ | 854 | EN ISO 12185 |
854
գ/սմ³
EN ISO 12185
|
Գույն | light yellow | տեսողական |
light yellow
տեսողական
|
|
Մածուցիկություն 100 °C-ում | mm²/s | 58.7 | DIN 51562-1 |
58.7
mm²/s
DIN 51562-1
|
Մածուցիկություն 40 °C-ում | mm²/s | 453.6 | DIN 51562-1 |
453.6
mm²/s
DIN 51562-1
|
Մածուցիկության ինդեքս VI | 200 | DIN ISO 2909 |
200
DIN ISO 2909
|
|
Բյուրեղացման ջերմաստիճան | °C | -45 | DIN ISO 3016 |
-45
°C
DIN ISO 3016
|
Կառուցման ջերմաստիճան | °C | 268 | DIN EN ISO 2592 |
268
°C
DIN EN ISO 2592
|
Պղնձյա շերտի փորձարկում 150°C-ում | 1a | ASTM D130 |
1a
ASTM D130
|
|
Թույլատվություններ | AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
|
RAVENOL Getriebeöl PAO CLP 320 is premium performance, extreme pressure lubricant designed for enclosed industrial gears and bearings operating under severe load conditions and in wide extremes of temperature.
Պահանջներին համապատասխանելը:
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
SAE: 320
- Առկա փաթեթավորում
- Ապրանքի պարամետրեր
Ծավալը:
60 լ
վաճառողի կոդը:
1332210-060
Ծավալը:

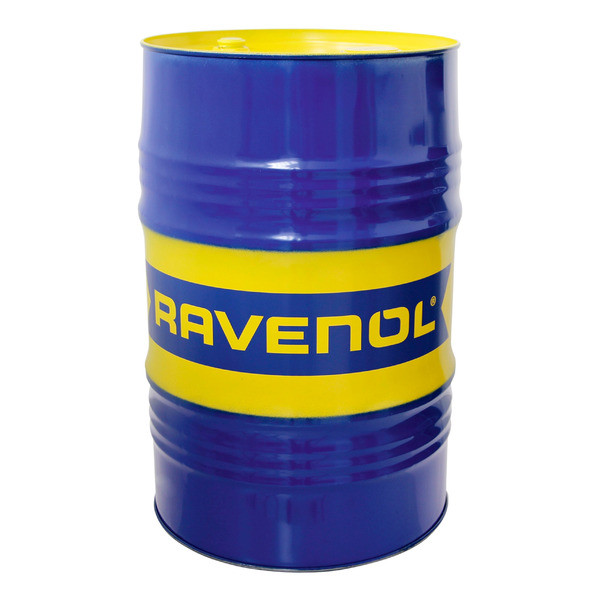

208 լ
վաճառողի կոդը:
1332210-208

Ծավալը:
1 000 լ
վաճառողի կոդը:
1332210-700
RAVENOL Getriebeöl PAO CLP 320 is premium performance, extreme pressure lubricant designed for enclosed industrial gears and bearings operating under severe load conditions and in wide extremes of temperature.
RAVENOL Getriebeöl PAO CLP 320 is formulated using PAO synthetic base oils and additive technologies to deliver excellent wear properties, outstanding extreme temperature performance for extended component and fluid life.
RAVENOL Getriebeöl PAO CLP 320 enhances gear box efficiency over a wide temperature range and can reduce power consumption.
RAVENOL Getriebeöl PAO CLP 320 is free of zinc and ash due to its formulation.
Application Note
RAVENOL Getriebeöl PAO CLP 320 is recommended for enclosed industrial gear drives and bearings particularly where they are operated under heavy duty conditions such as heavy loading, slow speed, shock loads and in wide extremes of temperature.
The tough oil film of RAVENOL Getriebeöl PAO CLP 320 and low coefficient of friction save energy in gearboxes.
The high viscosity index of RAVENOL Getriebeöl PAO CLP 320 means they retain their viscosity at high operating temperatures. This often allows the use of a lower ISO grade than with conventional gear oil resulting in even greater energy savings.
RAVENOL Getriebeöl PAO CLP 320 is designed to combat these conditions and will run cooler while maintaining a high lubricant film strength. For gearboxes that operate outdoors. When converting a gearbox to RAVENOL Getriebeöl PAO CLP 320, it is recommended to be cleaned and flushed first to gain the full benefit of the product.
RAVENOL Getriebeöl PAO CLP 320 is compatible with mineral oils, polyalphaolefin lubricants and most seal materials except natural rubber.
RAVENOL Getriebeöl PAO CLP 320 operates over the temperature range from -50°C to 150°C.
Characteristics
- An excellent wear protection
- Extends the life of gears and bearings and the plant
- Protects plants, which are operated under harsh conditions and high load
- Allows trouble-free operation in a wide temperature and load range
- A very stable high-pressure absorption capacity under shock loads
- A low foaming tendency
- The synthetic formulation reduces friction, and is energy-efficient in a wide temperature range
- An excellent low-temperature behavior
- An excellent rust and corrosion protection
Կարգավորում | Չափման միավոր | Արժեք | Փորձարկում | |
---|---|---|---|---|
SAE | 320 |
320
|
||
Brand | RAVENOL |
RAVENOL
|
||
Տեսակ | Full synthetic |
Full synthetic
|
||
Համապատասխանում է արտադրողի պահանջներին | AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
|
||
Համապատասխանում է արտադրողի բնութագրերին | DIN 51517-3 |
DIN 51517-3
|
||
Համապատասխանում է | Cincinnati Milacron |
Cincinnati Milacron
|
||
Հատուկ հզորություն 20°C-ի դեպքում | գ/սմ³ | 857.2 | EN ISO 12185 |
857.2
գ/սմ³
EN ISO 12185
|
Գույն | light yellow | տեսողական |
light yellow
տեսողական
|
|
Մածուցիկություն 100 °C-ում | mm²/s | 43.1 | DIN 51562-1 |
43.1
mm²/s
DIN 51562-1
|
Մածուցիկություն 40 °C-ում | mm²/s | 327.3 | DIN 51562-1 |
327.3
mm²/s
DIN 51562-1
|
Մածուցիկության ինդեքս VI | 189 | DIN ISO 2909 |
189
DIN ISO 2909
|
|
Բյուրեղացման ջերմաստիճան | °C | -54 | DIN ISO 3016 |
-54
°C
DIN ISO 3016
|
Կառուցման ջերմաստիճան | °C | 244 | DIN EN ISO 2592 |
244
°C
DIN EN ISO 2592
|
Բրոնզային կոռոզիայի թեստ | 121°C / 3 ժամ | 1b | ASTM D130 |
1b
121°C / 3 ժամ
ASTM D130
|
Պղնձյա շերտի փորձարկում 150°C-ում | 1a | ASTM D130 |
1a
ASTM D130
|
|
Թույլատվություններ | AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
|

Getriebeoel PAO CLP 220
Արդյունաբերական փոխանցումատուփի յուղ: Նվազագույն մաշվածություն, կայունություն ջերմաստիճանի և օքսիդացնող նյութերի նկատմամբ:
Պահանջներին համապատասխանելը:
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
SAE: 220
- Առկա փաթեթավորում
- Ապրանքի պարամետրեր

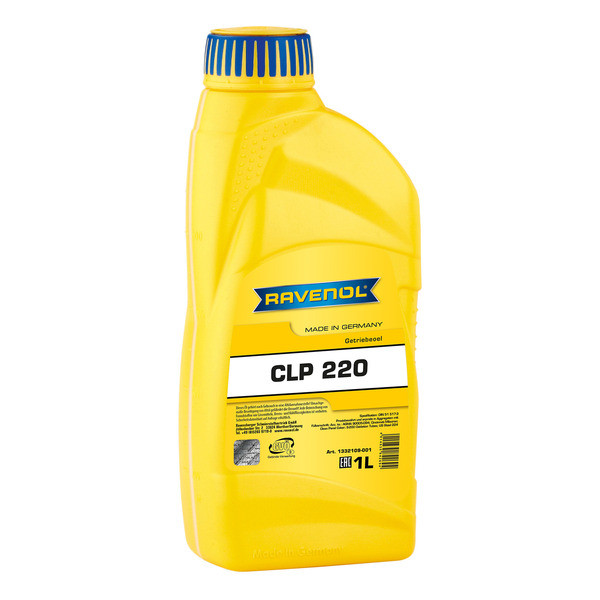

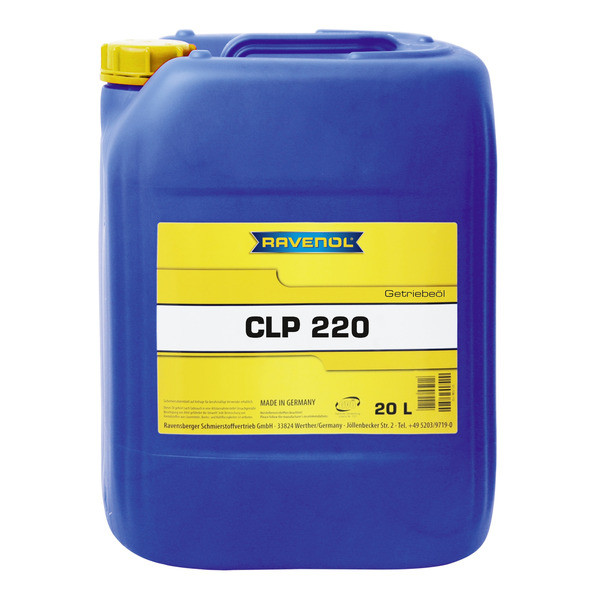

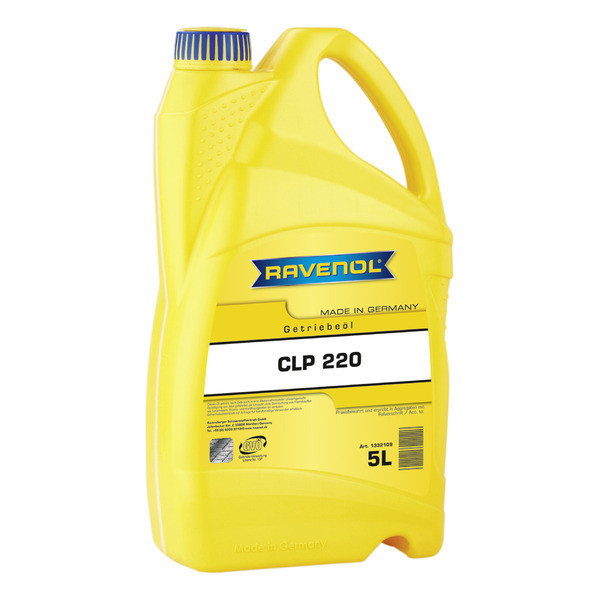

RAVENOL Getriebeoel CLP 220 is a high quality, mineral-based gear oil formulated with lead-free high-pressure additives (EP additives). Its special active substance combination provides a good, stable high-pressure impact load capacity.
RAVENOL Getriebeoel CLP 220 has a low pour point and therefore a very good cold behaviour.
Application Note
RAVENOL Getriebeoel CLP 220 can be used as a lubricant in nearly all industrial gear drives due to its good stress and/or impact characteristics.
Characteristics
- A very good, stable high-pressure impact capacity
- Resistant characteristics at high temperatures
- A good rust and corrosion impeding effect
- Excellent wear protection
- Very good anti-foaming characteristics
- A low pour point
- Very good cold behaviour
Կարգավորում | Չափման միավոր | Արժեք | Փորձարկում | |
---|---|---|---|---|
SAE | 220 |
220
|
||
Տեսակ | Mineral |
Mineral
|
||
ASTM |
|
|||
Հաստատված է արտադրողի կողմից |
|
|||
Համապատասխանում է արտադրողի պահանջներին | AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
|
||
Փորձարկված գործընկերների կողմից |
|
|||
Գործընկերների կողմից առաջարկված |
|
|||
Համապատասխանում է արտադրողի բնութագրերին | DIN 51517-3 |
DIN 51517-3
|
||
Համապատասխանում է | Cincinnati Milacron |
Cincinnati Milacron
|
||
Համապատասխանում է ապրանքներին |
|
|||
Հատուկ հզորություն 20°C-ի դեպքում | գ/սմ³ | 888 | EN ISO 12185 |
888
գ/սմ³
EN ISO 12185
|
Գույն | tan | տեսողական |
tan
տեսողական
|
|
Մածուցիկություն 100 °C-ում | mm²/s | 18.4 | DIN 51562-1 |
18.4
mm²/s
DIN 51562-1
|
Մածուցիկություն 40 °C-ում | mm²/s | 207.6 | DIN 51562-1 |
207.6
mm²/s
DIN 51562-1
|
Մածուցիկության ինդեքս VI | 98 | DIN ISO 2909 |
98
DIN ISO 2909
|
|
Բյուրեղացման ջերմաստիճան | °C | -9 | DIN ISO 3016 |
-9
°C
DIN ISO 3016
|
Կառուցման ջերմաստիճան | °C | 252 | DIN EN ISO 2592 |
252
°C
DIN EN ISO 2592
|
Թույլատվություններ | AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
|
RAVENOL Getriebeöl PAO CLP 150 is premium performance, extreme pressure lubricant designed for enclosed industrial gears and bearings operating under severe load conditions and in wide extremes of temperature.
Պահանջներին համապատասխանելը:
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
SAE: 150
- Առկա փաթեթավորում
- Ապրանքի պարամետրեր
RAVENOL Getriebeöl PAO CLP 150 is premium performance, extreme pressure lubricant designed for enclosed industrial gears and bearings operating under severe load conditions and in wide extremes of temperature.
RAVENOL Getriebeöl PAO CLP 150 is formulated using PAO synthetic base oils and additive technologies to deliver excellent wear properties, outstanding extreme temperature performance for extended component and fluid life.
RAVENOL Getriebeöl PAO CLP 150 enhances gear box efficiency over a wide temperature range and can reduce power consumption.
RAVENOL Getriebeöl PAO CLP 150 is free of zinc and ash due to its formulation.
Application Note
RAVENOL Getriebeöl PAO CLP 150 is recommended for enclosed industrial gear drives and bearings particularly where they are operated under heavy duty conditions such as heavy loading, slow speed, shock loads and in wide extremes of temperature.
The tough oil film of RAVENOL Getriebeöl PAO CLP 150 and low coefficient of friction save energy in gearboxes. The high viscosity index of RAVENOL Getriebeöl PAO CLP 150 means they retain their viscosity at high operating temperatures. This often allows the use of a lower ISO grade than with conventional gear oil resulting in even greater energy savings.
RAVENOL Getriebeöl PAO CLP 150 is designed to combat these conditions and will run cooler while maintaining a high lubricant film strength. For gearboxes that operate outdoors.
When converting a gearbox to RAVENOL Getriebeöl PAO CLP 150, it is recommended to be cleaned and flushed first to gain the full benefit of the product.
RAVENOL Getriebeöl PAO CLP 150 is compatible with mineral oils, polyalphaolefin lubricants and most seal materials except natural rubber.
RAVENOL Getriebeöl PAO CLP 150 operates over the temperature range from -50°C to 150°C.
Characteristics
- An excellent wear protection
- Extends the life of gears and bearings and the plan
- Protects plants, which are operated under harsh conditions and high load
- Allows trouble-free operation in a wide temperature and load range
- A very stable high-pressure absorption capacity under shock loads
- A low foaming tendency
- The synthetic formulation reduces friction, and is energy-efficient in a wide temperature range
- An excellent low-temperature behavior
- An excellent rust and corrosion protection
Կարգավորում | Չափման միավոր | Արժեք | Փորձարկում | |
---|---|---|---|---|
SAE | 150 |
150
|
||
Brand | RAVENOL |
RAVENOL
|
||
Տեսակ | Full synthetic |
Full synthetic
|
||
Համապատասխանում է արտադրողի պահանջներին | AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
|
||
Համապատասխանում է արտադրողի բնութագրերին | DIN 51517-3 |
DIN 51517-3
|
||
Համապատասխանում է | Cincinnati Milacron |
Cincinnati Milacron
|
||
Հատուկ հզորություն 20°C-ի դեպքում | գ/սմ³ | 853.1 | EN ISO 12185 |
853.1
գ/սմ³
EN ISO 12185
|
Գույն | light yellow | տեսողական |
light yellow
տեսողական
|
|
Մածուցիկություն 100 °C-ում | mm²/s | 23.3 | DIN 51562-1 |
23.3
mm²/s
DIN 51562-1
|
Մածուցիկություն 40 °C-ում | mm²/s | 155.5 | DIN 51562-1 |
155.5
mm²/s
DIN 51562-1
|
Մածուցիկության ինդեքս VI | 180 | DIN ISO 2909 |
180
DIN ISO 2909
|
|
Բյուրեղացման ջերմաստիճան | °C | -54 | DIN ISO 3016 |
-54
°C
DIN ISO 3016
|
Կառուցման ջերմաստիճան | °C | 238 | DIN EN ISO 2592 |
238
°C
DIN EN ISO 2592
|
Բրոնզային կոռոզիայի թեստ | 121°C / 3 ժամ | 1b | ASTM D130 |
1b
121°C / 3 ժամ
ASTM D130
|
Պղնձյա շերտի փորձարկում 150°C-ում | 1a | ASTM D130 |
1a
ASTM D130
|
|
Թույլատվություններ | AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
|

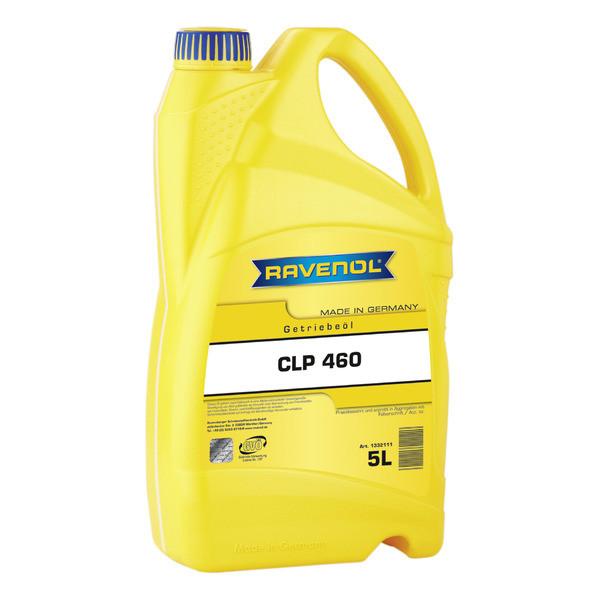

RAVENOL Getriebeoel CLP 460 is a high quality, mineral-based gear oil formulated with lead-free high-pressure additives (EP additives). Its special active substance combination provides a good, stable high-pressure impact load capacity.
Պահանջներին համապատասխանելը:
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
SAE: 460
- Առկա փաթեթավորում
- Ապրանքի պարամետրեր
Ծավալը:
5 լ
վաճառողի կոդը:
1332111-005
Ծավալը:

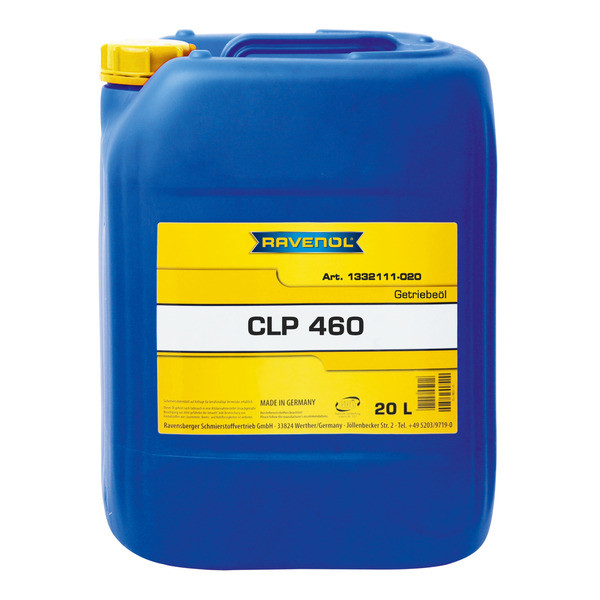

20 լ, ecobox
վաճառողի կոդը:
1332111-B20
Ծավալը:
208 լ
վաճառողի կոդը:
1332111-208
Ծավալը:
1 000 լ
վաճառողի կոդը:
1332111-700
RAVENOL Getriebeoel CLP 460 is a high quality, mineral-based gear oil formulated with lead-free high-pressure additives (EP additives). Its special active substance combination provides a good, stable high-pressure impact load capacity.
RAVENOL Getriebeoel CLP 460 has a low pour point and therefore a very good cold behaviour.
Application Note
RAVENOL Getriebeoel CLP 460 can be used as a lubricant in nearly all industrial gear drives due to its good stress and/or impact characteristics.
Characteristics
- A very good, stable high-pressure impact capacity
- Resistant characteristics at high temperatures
- A good rust and corrosion impeding effect
- Excellent wear protection
- Very good anti-foaming characteristics
- A low pour point
- Very good cold behaviour
Կարգավորում | Չափման միավոր | Արժեք | Փորձարկում | |
---|---|---|---|---|
SAE | 460 |
460
|
||
Brand | RAVENOL |
RAVENOL
|
||
Տեսակ | Mineral |
Mineral
|
||
Համապատասխանում է արտադրողի պահանջներին | AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
|
||
Համապատասխանում է արտադրողի բնութագրերին | DIN 51517-3 |
DIN 51517-3
|
||
Համապատասխանում է | Cincinnati Milacron |
Cincinnati Milacron
|
||
Հատուկ հզորություն 20°C-ի դեպքում | գ/սմ³ | 900 | EN ISO 12185 |
900
գ/սմ³
EN ISO 12185
|
Գույն | tan | տեսողական |
tan
տեսողական
|
|
Մածուցիկություն 100 °C-ում | mm²/s | 31.2 | DIN 51562-1 |
31.2
mm²/s
DIN 51562-1
|
Մածուցիկություն 40 °C-ում | mm²/s | 490.3 | DIN 51562-1 |
490.3
mm²/s
DIN 51562-1
|
Մածուցիկության ինդեքս VI | 93 | DIN ISO 2909 |
93
DIN ISO 2909
|
|
Բյուրեղացման ջերմաստիճան | °C | -12 | DIN ISO 3016 |
-12
°C
DIN ISO 3016
|
Կառուցման ջերմաստիճան | °C | 224 | DIN EN ISO 2592 |
224
°C
DIN EN ISO 2592
|
Թույլատվություններ | AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
|
RAVENOL Getriebeoel CLP 320 is a high quality, mineral-based gear oil formulated with lead-free high-pressure additives (EP additives). Its special active substance combination provides a good, stable high-pressure impact load capacity.
Պահանջներին համապատասխանելը:
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
SAE: 320
- Առկա փաթեթավորում
- Ապրանքի պարամետրեր
Ծավալը:
20 լ, ecobox
վաճառողի կոդը:
1332110-B20
Ծավալը:
1 000 լ
վաճառողի կոդը:
1332110-700

Ծավալը:
5 լ
վաճառողի կոդը:
1332110-005
RAVENOL Getriebeoel CLP 320 is a high quality, mineral-based gear oil formulated with lead-free high-pressure additives (EP additives). Its special active substance combination provides a good, stable high-pressure impact load capacity.
RAVENOL Getriebeoel CLP 320 has a low pour point and therefore a very good cold behaviour.
Application Note
RAVENOL Getriebeoel CLP 320 can be used as a lubricant in nearly all industrial gear drives due to its good stress and/or impact characteristics.
Characteristics
- A very good, stable high-pressure impact capacity.
- Resistant characteristics at high temperatures
- A good rust and corrosion impeding effect
- Excellent wear protection
- Very good anti-foaming characteristics
- A low pour point
- Very good cold behaviour
Կարգավորում | Չափման միավոր | Արժեք | Փորձարկում | |
---|---|---|---|---|
SAE | 320 |
320
|
||
Brand | RAVENOL |
RAVENOL
|
||
Տեսակ | Mineral |
Mineral
|
||
Համապատասխանում է արտադրողի պահանջներին | AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
|
||
Համապատասխանում է արտադրողի բնութագրերին | DIN 51517-3 |
DIN 51517-3
|
||
Համապատասխանում է | Cincinnati Milacron |
Cincinnati Milacron
|
||
Հատուկ հզորություն 20°C-ի դեպքում | գ/սմ³ | 395 | EN ISO 12185 |
395
գ/սմ³
EN ISO 12185
|
Գույն | tan | տեսողական |
tan
տեսողական
|
|
Մածուցիկություն 100 °C-ում | mm²/s | 24.3 | DIN 51562-1 |
24.3
mm²/s
DIN 51562-1
|
Մածուցիկություն 40 °C-ում | mm²/s | 327.6 | DIN 51562-1 |
327.6
mm²/s
DIN 51562-1
|
Մածուցիկության ինդեքս VI | 95 | DIN ISO 2909 |
95
DIN ISO 2909
|
|
Բյուրեղացման ջերմաստիճան | °C | -9 | DIN ISO 3016 |
-9
°C
DIN ISO 3016
|
Կառուցման ջերմաստիճան | °C | 244 | DIN EN ISO 2592 |
244
°C
DIN EN ISO 2592
|
Թույլատվություններ | AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
|
RAVENOL Getriebeoel CLP 220 is a high quality, mineral-based gear oil formulated with lead-free high-pressure additives (EP additives). Its special active substance combination provides a good, stable high-pressure impact load capacity.
Պահանջներին համապատասխանելը:
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
SAE: 220
- Առկա փաթեթավորում
- Ապրանքի պարամետրեր
Ծավալը:
1 լ
վաճառողի կոդը:
1332109-001
Ծավալը:
5 լ
վաճառողի կոդը:
1332209-005
Ծավալը:
5 լ
վաճառողի կոդը:
1332109-005
Ծավալը:
20 լ, ecobox
վաճառողի կոդը:
1332109-B20
Ծավալը:
60 լ
վաճառողի կոդը:
1332209-060
Ծավալը:
60 լ
վաճառողի կոդը:
1332109-060
Ծավալը:
208 լ
վաճառողի կոդը:
1332209-208
Ծավալը:
1 000 լ
վաճառողի կոդը:
1332109-700
RAVENOL Getriebeoel CLP 220 is a high quality, mineral-based gear oil formulated with lead-free high-pressure additives (EP additives). Its special active substance combination provides a good, stable high-pressure impact load capacity.
RAVENOL Getriebeoel CLP 220 has a low pour point and therefore a very good cold behaviour.
Application Note
RAVENOL Getriebeoel CLP 220 can be used as a lubricant in nearly all industrial gear drives due to its good stress and/or impact characteristics.
Characteristics
- A very good, stable high-pressure impact capacity
- Resistant characteristics at high temperatures
- A good rust and corrosion impeding effect
- Excellent wear protection
- Very good anti-foaming characteristics
- A low pour point
- Very good cold behaviour
Կարգավորում | Չափման միավոր | Արժեք | Փորձարկում | |
---|---|---|---|---|
SAE | 220 |
220
|
||
Brand | RAVENOL |
RAVENOL
|
||
Տեսակ | Mineral |
Mineral
|
||
Համապատասխանում է արտադրողի պահանջներին | AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
|
||
Համապատասխանում է արտադրողի բնութագրերին | DIN 51517-3 |
DIN 51517-3
|
||
Համապատասխանում է | Cincinnati Milacron |
Cincinnati Milacron
|
||
Հատուկ հզորություն 20°C-ի դեպքում | գ/սմ³ | 888 | EN ISO 12185 |
888
գ/սմ³
EN ISO 12185
|
Գույն | tan | տեսողական |
tan
տեսողական
|
|
Մածուցիկություն 100 °C-ում | mm²/s | 18.4 | DIN 51562-1 |
18.4
mm²/s
DIN 51562-1
|
Մածուցիկություն 40 °C-ում | mm²/s | 207.6 | DIN 51562-1 |
207.6
mm²/s
DIN 51562-1
|
Մածուցիկության ինդեքս VI | 98 | DIN ISO 2909 |
98
DIN ISO 2909
|
|
Բյուրեղացման ջերմաստիճան | °C | -9 | DIN ISO 3016 |
-9
°C
DIN ISO 3016
|
Կառուցման ջերմաստիճան | °C | 252 | DIN EN ISO 2592 |
252
°C
DIN EN ISO 2592
|
Թույլատվություններ | AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
|
RAVENOL Getriebeoel CLP 150 is a high quality, mineral-based gear oil formulated with lead-free high-pressure additives (EP additives). Its special active substance combination provides a good, stable high-pressure impact load capacity.
Պահանջներին համապատասխանելը:
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224, ZF TE-ML 04H
SAE: 150
- Առկա փաթեթավորում
- Ապրանքի պարամետրեր
RAVENOL Getriebeoel CLP 150 is a high quality, mineral-based gear oil formulated with lead-free high-pressure additives (EP additives). Its special active substance combination provides a good, stable high-pressure impact load capacity.
RAVENOL Getriebeoel CLP 150 has a low pour point and therefore a very good cold behaviour.
Application Note
RAVENOL Getriebeoel CLP 150 can be used as a lubricant in nearly all industrial gear drives due to its good stress and/or impact characteristics.
Characteristics
- A very good, stable high-pressure impact capacity.
- Resistant characteristics at high temperatures
- A good rust and corrosion impeding effect
- Excellent wear protection
- Very good anti-foaming characteristics
- A low pour point
- Very good cold behaviour
Կարգավորում | Չափման միավոր | Արժեք | Փորձարկում | |
---|---|---|---|---|
SAE | 150 |
150
|
||
Brand | RAVENOL |
RAVENOL
|
||
Տեսակ | Mineral |
Mineral
|
||
Համապատասխանում է արտադրողի պահանջներին | AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224, ZF TE-ML 04H |
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224, ZF TE-ML 04H
|
||
Համապատասխանում է արտադրողի բնութագրերին | DIN 51517-3 |
DIN 51517-3
|
||
Համապատասխանում է | Cincinnati Milacron |
Cincinnati Milacron
|
||
Հատուկ հզորություն 20°C-ի դեպքում | գ/սմ³ | 884 | EN ISO 12185 |
884
գ/սմ³
EN ISO 12185
|
Գույն | tan | տեսողական |
tan
տեսողական
|
|
Մածուցիկություն 100 °C-ում | mm²/s | 14.8 | DIN 51562-1 |
14.8
mm²/s
DIN 51562-1
|
Մածուցիկություն 40 °C-ում | mm²/s | 152.9 | DIN 51562-1 |
152.9
mm²/s
DIN 51562-1
|
Մածուցիկության ինդեքս VI | 96 | DIN ISO 2909 |
96
DIN ISO 2909
|
|
Բյուրեղացման ջերմաստիճան | °C | -30 | DIN ISO 3016 |
-30
°C
DIN ISO 3016
|
Կառուցման ջերմաստիճան | °C | 256 | DIN EN ISO 2592 |
256
°C
DIN EN ISO 2592
|
Թույլատվություններ | AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224, ZF TE-ML 04H |
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224, ZF TE-ML 04H
|
RAVENOL Getriebeoel CLP 100 is a high quality, mineral-based gear oil formulated with lead-free high-pressure additives (EP additives). Its special active substance combination provides a good, stable high-pressure impact load capacity.
Պահանջներին համապատասխանելը:
AGMA 9005-D94, Clean Panel Coker, FZG 12, S-200 Oxidation Tubes, U.S. Steel 224, ZF TE-ML 04H
SAE: 100
- Առկա փաթեթավորում
- Ապրանքի պարամետրեր
Ծավալը:
20 լ
վաճառողի կոդը:
1332107-020
Ծավալը:
1 000 լ
վաճառողի կոդը:
1332107-700

Ծավալը:
20 լ, ecobox
վաճառողի կոդը:
1332107-B20
RAVENOL Getriebeoel CLP 100 is a high quality, mineral-based gear oil formulated with lead-free high-pressure additives (EP additives). Its special active substance combination provides a good, stable high-pressure impact load capacity.
RAVENOL Getriebeoel CLP 100 has a low pour point and therefore a very good cold behaviour.
Application Note
RAVENOL Getriebeoel CLP 100 can be used as a lubricant in nearly all industrial gear drives due to its good stress and/or impact characteristics.
Characteristics
- A very good, stable high-pressure impact capacity
- Resistant characteristics at high temperatures
- A good rust and corrosion impeding effect
- Excellent wear protection
- Very good anti-foaming characteristics
- A low pour point
- Very good cold behaviour
Կարգավորում | Չափման միավոր | Արժեք | Փորձարկում | |
---|---|---|---|---|
SAE | 100 |
100
|
||
Brand | RAVENOL |
RAVENOL
|
||
Տեսակ | Mineral |
Mineral
|
||
Համապատասխանում է արտադրողի պահանջներին | AGMA 9005-D94, Clean Panel Coker, FZG 12, S-200 Oxidation Tubes, U.S. Steel 224, ZF TE-ML 04H |
AGMA 9005-D94, Clean Panel Coker, FZG 12, S-200 Oxidation Tubes, U.S. Steel 224, ZF TE-ML 04H
|
||
Համապատասխանում է արտադրողի բնութագրերին | DIN 51517-3 |
DIN 51517-3
|
||
Համապատասխանում է | Cincinnati Milacron |
Cincinnati Milacron
|
||
Հատուկ հզորություն 20°C-ի դեպքում | գ/սմ³ | 875 | EN ISO 12185 |
875
գ/սմ³
EN ISO 12185
|
Գույն | tan | տեսողական |
tan
տեսողական
|
|
Մածուցիկություն 100 °C-ում | mm²/s | 11.4 | DIN 51562-1 |
11.4
mm²/s
DIN 51562-1
|
Մածուցիկություն 40 °C-ում | mm²/s | 106.3 | DIN 51562-1 |
106.3
mm²/s
DIN 51562-1
|
Մածուցիկության ինդեքս VI | 106 | DIN ISO 2909 |
106
DIN ISO 2909
|
|
Բյուրեղացման ջերմաստիճան | °C | -21 | DIN ISO 3016 |
-21
°C
DIN ISO 3016
|
Կառուցման ջերմաստիճան | °C | 242 | DIN EN ISO 2592 |
242
°C
DIN EN ISO 2592
|
Թույլատվություններ | AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, FZG 12, S-200 Oxidation Tubes, U.S. Steel 224, ZF TE-ML 04H |
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, FZG 12, S-200 Oxidation Tubes, U.S. Steel 224, ZF TE-ML 04H
|

Getriebeoel CLP 68
Պահանջներին համապատասխանելը:
AGMA 9005-D94, Clean Panel Coker, FZG 12, S-200 Oxidation Tubes, U.S. Steel 224
SAE: 68
- Առկա փաթեթավորում
- Ապրանքի պարամետրեր
RAVENOL Getriebeoel CLP 68 is a high quality, mineral-based gear oil formulated with lead-free high-pressure additives (EP additives). Its special active substance combination provides a good, stable high-pressure impact load capacity.
RAVENOL Getriebeoel CLP 68 has a low pour point and therefore a very good cold behaviour.
Application Note
RAVENOL Getriebeoel CLP 68 can be used as a lubricant in nearly all industrial gear drives due to its good stress and/or impact characteristics.
Characteristics
- A very good, stable high-pressure impact capacity
- Resistant characteristics at high temperatures
- A good rust and corrosion impeding effect
- Excellent wear protection
- Very good anti-foaming characteristics
- A low pour point
- Very good cold behaviour
Կարգավորում | Չափման միավոր | Արժեք | Փորձարկում | |
---|---|---|---|---|
SAE | 68 |
68
|
||
Տեսակ | Mineral |
Mineral
|
||
ASTM |
|
|||
Հաստատված է արտադրողի կողմից |
|
|||
Համապատասխանում է արտադրողի պահանջներին | AGMA 9005-D94, Clean Panel Coker, FZG 12, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, FZG 12, S-200 Oxidation Tubes, U.S. Steel 224
|
||
Փորձարկված գործընկերների կողմից |
|
|||
Գործընկերների կողմից առաջարկված |
|
|||
Համապատասխանում է արտադրողի բնութագրերին | DIN 51517-3 |
DIN 51517-3
|
||
Համապատասխանում է | Cincinnati Milacron |
Cincinnati Milacron
|
||
Համապատասխանում է ապրանքներին |
|
|||
Հատուկ հզորություն 20°C-ի դեպքում | գ/սմ³ | 879 | EN ISO 12185 |
879
գ/սմ³
EN ISO 12185
|
Գույն | Brown | տեսողական |
Brown
տեսողական
|
|
Մածուցիկություն 100 °C-ում | mm²/s | 8.6 | DIN 51562-1 |
8.6
mm²/s
DIN 51562-1
|
Մածուցիկություն 40 °C-ում | mm²/s | 67 | DIN 51562-1 |
67
mm²/s
DIN 51562-1
|
Մածուցիկության ինդեքս VI | 100 | DIN ISO 2909 |
100
DIN ISO 2909
|
|
Բյուրեղացման ջերմաստիճան | °C | -24 | DIN ISO 3016 |
-24
°C
DIN ISO 3016
|
Կառուցման ջերմաստիճան | °C | 220 | DIN EN ISO 2592 |
220
°C
DIN EN ISO 2592
|
Թույլատվություններ | AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, FZG 12, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, FZG 12, S-200 Oxidation Tubes, U.S. Steel 224
|
