Որոնել ըստ VIN / Frame, ապրանքանիշի, մոդելի, մեքենայի տեսակի, միավորի անվանման կամ ցանկացած յուղի հոդվածի համարի.
- Առկա փաթեթավորում
- Ապրանքի պարամետրեր
Ծավալը:
208 լ
վաճառողի կոդը:
1350371-208
Կարգավորում | Չափման միավոր | Արժեք | Փորձարկում | |
---|---|---|---|---|
SAE | 460 |
460
|
||
Brand | RAVENOL |
RAVENOL
|

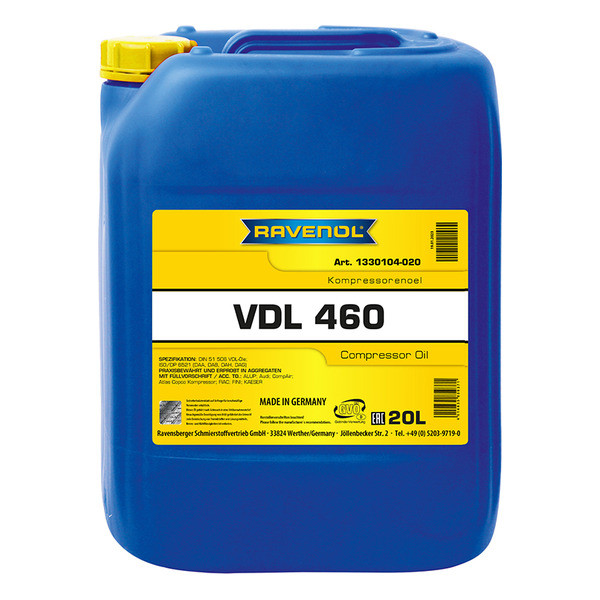

RAVENOL Kompressorenoel VDL 460 meets the high requirements of DIN 51 506. Specially designed with high quality, age-resistant base oils.
SAE: 460
- Առկա փաթեթավորում
- Ապրանքի պարամետրեր
Ծավալը:
20 լ
վաճառողի կոդը:
1330104-020
RAVENOL Kompressorenoel VDL 460 meets the high requirements of DIN 51 506. Specially designed with high quality, age-resistant base oils.
RAVENOL Kompressorenoel VDL 460 has a good adhesion, is water repellent and wear reducing. As many compressors operate at high temperatures, the oil should have good aging resistance at very low residue formation.
RAVENOL Kompressorenoel VDL 460 provides a secure lubrication not only in the upper temperature range, also in the cold state of the compressor to achieve a reduction of wear. By selected and coordinated additive composition the tendency to coking and the formation of flammable residues is minimized.
Application Note
RAVENOL Kompressorenoel VDL 460 can be used in stationary and mobile compressors with discharge temperatures up to 220°C.
RAVENOL Kompressorenoel VDL 460 can also be used for lubrication of engines and diesel engines where the manufacturer does not stipulate any HD motor oil.
Exceeds the requirements for VBL- and VCL-oils.
Characteristics
- Excellent aging resistance
- Reliable wear protection
- Excellent viscosity-temperature behavior
- Good cold starting properties
- Low coking tendency
- Neutral towards sealing materials
Կարգավորում | Չափման միավոր | Արժեք | Փորձարկում | |
---|---|---|---|---|
Brand | RAVENOL |
RAVENOL
|
||
SAE | 460 |
460
|
||
Տեսակ | Mineral |
Mineral
|
||
Համապատասխանում է արտադրողի բնութագրերին | DIN 51506 VDL, ISO/DP 6521 L-DAA, ISO/DP 6521 L-DAB, ISO/DP 6521 L-DAG, ISO/DP 6521 L-DAH |
DIN 51506 VDL, ISO/DP 6521 L-DAA, ISO/DP 6521 L-DAB, ISO/DP 6521 L-DAG, ISO/DP 6521 L-DAH
|
||
Համապատասխանում է | ALUP, Atlas Copco Kompressor, CompAir, FIAC, FINI, KAESER, VW |
ALUP, Atlas Copco Kompressor, CompAir, FIAC, FINI, KAESER, VW
|
||
Հատուկ հզորություն 20°C-ի դեպքում | գ/սմ³ | 899 | EN ISO 12185 |
899
գ/սմ³
EN ISO 12185
|
Գույն | Yellow | տեսողական |
Yellow
տեսողական
|
|
Մածուցիկություն 100 °C-ում | mm²/s | 29.8 | DIN 51562-1 |
29.8
mm²/s
DIN 51562-1
|
Մածուցիկություն 40 °C-ում | mm²/s | 463 | DIN 51562-1 |
463
mm²/s
DIN 51562-1
|
Մածուցիկության ինդեքս VI | 92 | DIN ISO 2909 |
92
DIN ISO 2909
|
|
Բյուրեղացման ջերմաստիճան | °C | -9 | DIN ISO 3016 |
-9
°C
DIN ISO 3016
|
Կառուցման ջերմաստիճան | °C | 310 | DIN EN ISO 2592 |
310
°C
DIN EN ISO 2592
|
Թույլատվություններ | DIN 51506 VDL, ISO/DP 6521 L-DAA, ISO/DP 6521 L-DAB, ISO/DP 6521 L-DAG, ISO/DP 6521 L-DAH |
DIN 51506 VDL, ISO/DP 6521 L-DAA, ISO/DP 6521 L-DAB, ISO/DP 6521 L-DAG, ISO/DP 6521 L-DAH
|
RAVENOL Getriebeöl PAO CLP 460 is premium performance, extreme pressure lubricant designed for enclosed industrial gears and bearings operating under severe load conditions and in wide extremes of temperature.
Պահանջներին համապատասխանելը:
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
SAE: 460
- Առկա փաթեթավորում
- Ապրանքի պարամետրեր
Ծավալը:
60 լ
վաճառողի կոդը:
1332211-060
Ծավալը:
208 լ
վաճառողի կոդը:
1332211-208
Ծավալը:
10 լ
վաճառողի կոդը:
1332211-010
RAVENOL Getriebeöl PAO CLP 460 is premium performance, extreme pressure lubricant designed for enclosed industrial gears and bearings operating under severe load conditions and in wide extremes of temperature.
RAVENOL Getriebeöl PAO CLP 460 is formulated using PAO synthetic base oils and additive technologies to deliver excellent wear properties, outstanding extreme temperature performance for extended component and fluid life.
RAVENOL Getriebeöl PAO CLP 460 enhances gear box efficiency over a wide temperature range and can reduce power consumption.
RAVENOL Getriebeöl PAO CLP 460 is free of zinc and ash due to its formulation.
Application Note
RAVENOL Getriebeöl PAO CLP 460 is recommended for enclosed industrial gear drives and bearings particularly where they are operated under heavy duty conditions such as heavy loading, slow speed, shock loads and in wide extremes of temperature.
The tough oil film of RAVENOL Getriebeöl PAO CLP 460 and low coefficient of friction save energy in gearboxes. The high viscosity index of RAVENOL Getriebeöl PAO CLP 460 means they retain their viscosity at high operating temperatures. This often allows the use of a lower ISO grade than with conventional gear oil resulting in even greater energy savings.
RAVENOL Getriebeöl PAO CLP 460 is designed to combat these conditions and will run cooler while maintaining a high lubricant film strength. For gearboxes that operate outdoors.
When converting a gearbox to RAVENOL Getriebeöl PAO CLP 460, it is recommended to be cleaned and flushed first to gain the full benefit of the product.
RAVENOL Getriebeöl PAO CLP 460 is compatible with mineral oils, polyalphaolefin lubricants and most seal materials except natural rubber.
RAVENOL Getriebeöl PAO CLP 460 operates over the temperature range from -50°C to 120°C.
Characteristics
- An excellent wear protection
- Extends the life of gears and bearings and the plant
- Protects plants, which are operated under harsh conditions and high load
- Allows trouble-free operation in a wide temperature and load range
- A very stable high-pressure absorption capacity under shock loads
- A low foaming tendency
- The synthetic formulation reduces friction, and is energy-efficient in a wide temperature range
- An excellent low-temperature behavior
- An excellent rust and corrosion protection
Կարգավորում | Չափման միավոր | Արժեք | Փորձարկում | |
---|---|---|---|---|
SAE | 460 |
460
|
||
Brand | RAVENOL |
RAVENOL
|
||
Տեսակ | Full synthetic |
Full synthetic
|
||
Համապատասխանում է արտադրողի պահանջներին | AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
|
||
Համապատասխանում է արտադրողի բնութագրերին | DIN 51517-3 |
DIN 51517-3
|
||
Համապատասխանում է | Cincinnati Milacron |
Cincinnati Milacron
|
||
Հատուկ հզորություն 20°C-ի դեպքում | գ/սմ³ | 854 | EN ISO 12185 |
854
գ/սմ³
EN ISO 12185
|
Գույն | light yellow | տեսողական |
light yellow
տեսողական
|
|
Մածուցիկություն 100 °C-ում | mm²/s | 58.7 | DIN 51562-1 |
58.7
mm²/s
DIN 51562-1
|
Մածուցիկություն 40 °C-ում | mm²/s | 453.6 | DIN 51562-1 |
453.6
mm²/s
DIN 51562-1
|
Մածուցիկության ինդեքս VI | 200 | DIN ISO 2909 |
200
DIN ISO 2909
|
|
Բյուրեղացման ջերմաստիճան | °C | -45 | DIN ISO 3016 |
-45
°C
DIN ISO 3016
|
Կառուցման ջերմաստիճան | °C | 268 | DIN EN ISO 2592 |
268
°C
DIN EN ISO 2592
|
Պղնձյա շերտի փորձարկում 150°C-ում | 1a | ASTM D130 |
1a
ASTM D130
|
|
Թույլատվություններ | AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
|
RAVENOL Getriebeoel CLP 460 is a high quality, mineral-based gear oil formulated with lead-free high-pressure additives (EP additives). Its special active substance combination provides a good, stable high-pressure impact load capacity.
Պահանջներին համապատասխանելը:
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
SAE: 460
- Առկա փաթեթավորում
- Ապրանքի պարամետրեր
Ծավալը:
5 լ
վաճառողի կոդը:
1332111-005
Ծավալը:
20 լ, ecobox
վաճառողի կոդը:
1332111-B20
Ծավալը:
208 լ
վաճառողի կոդը:
1332111-208
Ծավալը:
1 000 լ
վաճառողի կոդը:
1332111-700
RAVENOL Getriebeoel CLP 460 is a high quality, mineral-based gear oil formulated with lead-free high-pressure additives (EP additives). Its special active substance combination provides a good, stable high-pressure impact load capacity.
RAVENOL Getriebeoel CLP 460 has a low pour point and therefore a very good cold behaviour.
Application Note
RAVENOL Getriebeoel CLP 460 can be used as a lubricant in nearly all industrial gear drives due to its good stress and/or impact characteristics.
Characteristics
- A very good, stable high-pressure impact capacity
- Resistant characteristics at high temperatures
- A good rust and corrosion impeding effect
- Excellent wear protection
- Very good anti-foaming characteristics
- A low pour point
- Very good cold behaviour
Կարգավորում | Չափման միավոր | Արժեք | Փորձարկում | |
---|---|---|---|---|
SAE | 460 |
460
|
||
Brand | RAVENOL |
RAVENOL
|
||
Տեսակ | Mineral |
Mineral
|
||
Համապատասխանում է արտադրողի պահանջներին | AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
|
||
Համապատասխանում է արտադրողի բնութագրերին | DIN 51517-3 |
DIN 51517-3
|
||
Համապատասխանում է | Cincinnati Milacron |
Cincinnati Milacron
|
||
Հատուկ հզորություն 20°C-ի դեպքում | գ/սմ³ | 900 | EN ISO 12185 |
900
գ/սմ³
EN ISO 12185
|
Գույն | tan | տեսողական |
tan
տեսողական
|
|
Մածուցիկություն 100 °C-ում | mm²/s | 31.2 | DIN 51562-1 |
31.2
mm²/s
DIN 51562-1
|
Մածուցիկություն 40 °C-ում | mm²/s | 490.3 | DIN 51562-1 |
490.3
mm²/s
DIN 51562-1
|
Մածուցիկության ինդեքս VI | 93 | DIN ISO 2909 |
93
DIN ISO 2909
|
|
Բյուրեղացման ջերմաստիճան | °C | -12 | DIN ISO 3016 |
-12
°C
DIN ISO 3016
|
Կառուցման ջերմաստիճան | °C | 224 | DIN EN ISO 2592 |
224
°C
DIN EN ISO 2592
|
Թույլատվություններ | AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
|
